Broadband absorbing mono, blended and hybrid nanofluids for direct absorption solar collector: a comprehensive review

Drotning [50] introduced a term called solar-weighted absorption fraction (Sm), as shown in equation (2), which is used to measure the percentage of solar energy absorbed by the fluid volume in the cuvette. The ASTM standard at AM 1.5 was used as the reference spectra for the calculations. Complete absorption of incident radiation occurs when the solar-weighted absorptivity plot coincides with the reference spectra:

$$\begin{equation}{\text{Sm}} = \frac{{{{\int \nolimits }}_0^\lambda {I_\lambda }{\alpha _\lambda }{\text{d}}\lambda }}{{{{\int \nolimits }}_0^\lambda {I_\lambda }{\text{d}}\lambda }}.\end{equation} \tag{ 2 }$$

Photothermal conversion tests are conducted to analyze the energy conversion efficiency of nanofluids. Nanofluids placed inside a transparent cuvette [51] or test tube [52] will be illuminated by solar simulators. Thermocouples inserted inside the fluid volume will measure the temperature of the nanofluid during illumination, and the incident solar radiation will be measured using a pyranometer [53]. The PTE of the nanofluid is the percentage of energy absorbed by the nanofluid to the total incident solar energy [54]. Most commonly, xenon [55] and halogen lamps [56] are used for photothermal conversion tests, as observed in figure 3(a). The solar spectrum almost coincides with that of the xenon lamp. Consequently, halogen lamps are usually used with shortwave optical filter lenses to match the solar spectral irradiation [57]. Since the test setup is illuminated by solar radiation in only one direction, non-uniform volumetric heating takes place inside the fluid. To counteract this drawback, Guo et al [58] used an optical fiber as an internal light source, which is inserted into the fluid medium and illuminated on its other end by a solar simulator. This mechanism facilitates uniform volumetric absorption inside the fluid volume. A photothermal conversion test is also performed under direct solar irradiation [53, 59], as shown in figure 3(b). The photothermal energy conversion efficiency of nanofluids is calculated using equation (3):

$$\begin{align} {\eta _{{\text{th}}}} &= \frac{{{Q_{{\text{nf}}}}}}{{{Q_{{\text{sol}}}}}}\nonumber \\ {\eta _{{\text{th}}}} &= \frac{{{m_{{\text{nf}}}}{C_{p,{\text{nf}}}}\Delta T}}{{IA}} .\end{align} \tag{ 3 }$$

Zoom In Zoom Out Reset image size

He et al [67] studied the PTE of Cu nanofluids and observed that the maximum achievable temperature was enhanced by 25.3% compared to the base fluid. The study also reported a considerable decrease in transmittance with an increase in particle size, volume fraction and optical depth. Zang et al [68] performed an experimental investigation into the photothermal characteristics of gold (Au) nanoparticles at different wavelengths using a solar simulator. The results show that the highest energy conversion efficiency was reported for the nanofluid in the NIR spectrum (710–1064 nm). Filho et al [69] conducted a study on the photothermal conversion efficiency of plasmonic silver (Ag) nanoparticles. The study concluded that enhancement as high as 144% was observed for the nanofluid at a lower volume concentration of 6.5 ppm. The PTE of metallic nanoparticles (Cu, Ag, Fe and Zn) was studied by Amjad et al [70]. The study confirmed that Ag nanoparticles achieved the highest enhancement with a photothermal conversion efficiency of 99.7% compared to the base fluid. Amjad et al [71] analyzed the volumetric solar absorption in Au nanoparticle dispersions with a focus on steam generation. Enhancement in PTE (95% over base fluid) was observed at 0.04 wt%. Sharaf et al [72] investigated the optical characteristics of broadband absorbing polyethylene glycol (PEG) and trisodium citrate (CIT)-based Au nanofluids with a focus on improving thermodynamic stability. The results show that PEG-based Au nanofluids exhibit higher thermal stability and require less particle loading for better direct absorption. Sharaf et al [73] synthesized Au nanofluids using the citrate reduction technique. Nanoparticles were coated with PEG, polyvinyl pyrrolidine, or bovine serum albumin, and the photostability of these nanofluids was investigated. The polymeric-coated nano-dispersions were observed to be highly stable during cyclic solar radiation exposure. Li et al [74] used Au nanofluids to selectively absorb solar radiation to be applied to the spectral splitting PV/T. The nanofluid exhibited higher radiation extinction in the visible spectrum, and the system achieved about 75% solar energy conversion efficiency. Ham et al [13] developed an Fe₃O₄ nanofluid-based volumetric absorption and surface absorption collector. The results reveal that the volumetric absorption solar collector performs better than the surface absorption collector.

Zhang et al [75] analyzed the optical absorptivity of a full-spectrum absorbing mesoporous CuO nanofluid. The study revealed that the mesoporous CuO nanofluid exhibited 83.66% efficiency enhancement compared to the nonporous CuO nanofluid, which has 58.86% efficiency. Karami et al [76] investigated EG-water mixture-based CuO nanofluids for application in a low-temperature DASC. At 0.01% volume fraction, the nanofluid absorbed energy equal to four times that of the base fluid. An experimental study of the solar thermal energy conversion properties of water-based Fe₃O₄ nanofluids on a direct absorption parabolic trough was conducted by Liu et al [77]. The magnetic nanofluid-based collector exhibited 25% and 12% higher efficiency than conventional and selective surface absorber systems, respectively. Milanese et al [78] experimentally measured the optical properties of different metal oxide nanofluids (Al₂O₃, CuO, TiO₂, ZnO, CeO₂ and Fe₂O₃) for low-temperature DASCs. The CuO and Fe₂O₃ nanofluids exhibited the highest extinction efficiency and least transmittance among the other nanofluids. Milanese et al [79] further analyzed the optical absorptivity of gas-based ZnO, CeO₂ and Fe₂O₃ nanofluids for high-temperature solar applications. Increasing the temperature of nanofluids has a negligible influence on their optical absorptivity. Gorji et al [80] studied magnetite, graphite and Ag nanofluids for low-temperature direct absorption applications. Magnetite nanofluids exhibited the highest photothermal conversion efficiency compared to other nanofluids.

Zhu et al [81] analyzed the radiative properties of titanium and aluminum nitride nanofluids. The study showed that TiN has better optical absorptivity compared to other nanofluids. Żyła et al [82] performed thermal, electrical and optical property characterization of the EG-based Si₃N₄ nanofluid. An absorption peak was observed in the UV region and the absorptivity increased with the volume fraction. The experimental analysis conducted by Wang et al [83] on TiN-based DASC showed that a solar-weighted absorption of 99% could be achieved at 0.01 wt%. Meng et al [84] analyzed the potential of ZrC nanofluids for direct absorption applications. High PTE and solar-weighted absorption coefficients of 92% and 0.99% were reported at 0.02 wt%.

Qu et al [85] examined the photothermal conversion efficiency of multi-walled carbon nanotube (MWCNT)-based nanofluids. An enhancement of 22.7% in maximum temperature was achieved over the base fluid at an optimal mass fraction (0.01%) of CNT nanofluid. An experimental study on MWCNT nanofluids for DASC-based applications conducted by Lee et al [86] shows that the extinction coefficient increases linearly with volume percentage. Karami et al [87] reported that functionalized CNTs with high dispersion stability and thermo-optical properties are potential candidates for solar nanofluids. Thermal conductivity enhancement of 32.2% was reported in the analysis. An experimental study on nanofluids for DASC, conducted by Hordy et al [88], showed that MWCNT nanofluids possess broadband absorption along the solar spectrum and exceptional stability over a longer period of work time. Shende et al [89] investigated the thermo-optical properties of a partially unzipped multiwalled carbon nanotube (PUMWNT) nanofluid. Water-based nanofluid was found to possess higher thermo-optical properties. Meng et al [90] studied the effect of nanofluid mass fraction and temperature on the photothermal phenomenon and thermal and rheological properties. The study reported a maximum enhancement of 18% in PTE of CNT nanofluids at 0.5 wt%. Experimental investigation into the solar absorption properties of EG and water-based SWCNH nanofluids was conducted by Mercatelli et al [91]. The optical absorption characterization of SWCNH by Sani et al [92] shows that the nanofluid has superior photothermal conversion efficiency.

The optical and rheological properties of functionalized graphene nanoplatelet nanofluids were investigated by Sani et al [93]. The addition of nanoparticles produces considerable enhancement of solar absorption even at lower concentrations. Photothermal property characterization of graphene nanoplatelets performed by Vakili et al [94] reported that 0.005 wt% nanofluid showed the highest efficiency. A 20% enhancement of PTE by graphene nanofluids over the base fluid was reported in the study conducted by Bing et al [55]. Sani et al [95] analyzed the optical properties of an EG-based graphite/diamond nanofluid. The results indicate almost complete extinction of solar radiation within a 15 mm path length for a concentration of 0.01 wt%. Shu et al [96] synthesized reduced graphene oxide (RGO) nanofluids with excellent dispersion stability for DASC. In addition to broadband absorption, the nanofluid exhibited improvement in thermal conductivity and decrement in viscosity. Li et al [97] conducted a study on the PTE of single-layered graphene and graphene oxide (GO) nanofluids through direct and reverse irradiation methods. Both graphene and GO nanofluids exhibited the highest PTE enhancement of 189% and 172%, respectively, in the reverse irradiation mode. A novel lanthanum hexaboride (LaB₆) nanofluid was prepared through a solid-state synthesis route by Guo et al [98]. The nanofluid shows a photothermal energy conversion efficiency of 98.65%. The absorption is found to range across the solar spectrum with exceptional absorptivity in the 380–1350 nm wavelength range. Sreekumar et al [99] developed cheaper carbon soot-based nanofluid for application in DASC. The results showed that the nanofluid could absorb about 70% incident solar radiation. The photothermal efficiencies of the above-discussed monocomponent nanofluids are graphically represented in figure 4. The maximum photothermal efficiencies achieved by each nanofluid were selected. However, the graph can only be used to provide information on the photothermal capability and cannot be used for comparing the PTE. This is because each research work was performed under different experimental conditions and with different nanofluid concentrations. In the present review, it was observed that the novel LaB₆ nanofluid displayed a PTE as high as 98% at a low concentration (0.02 wt%) [98]. Other nanofluids including MWCNT, ZrC and Au-based nanofluids also display promising energy conversion efficiency.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Sreehari et al [101] synthesized hybrid antimony-doped tin oxide (ATO)/Ag nanofluids using a facile one-step reduction reaction. Ag nanoparticle is attached to ATO nanoparticle, as observed from the TEM image of nanocomposite in figure 6(a). A two-step method was followed to produce DI water-based nanofluids. In this study, the mass fraction of broadband absorbing hybrid nanoparticles and surfactants was optimized based on the solar-weighted absorption percentage. The optimized nanofluid was used for experiments in a PTC. The highest SWAF of the nanofluid was reported to be 98.9% for 0.2 wt% of the nanoparticle concentration. The energy efficiency of the hybrid nanofluid-based collector was observed to be 63.5%.

Zoom In Zoom Out Reset image size

Zeng et al [102] synthesized the full-spectrum absorbing hybrid Fe₃O₄/TiN nanocomposite using condensation polymerization. In this process, the carboxyl group present on the surface of Fe₃O₄ and amino groups present on the surface of TiN will be coupled [103] to generate hierarchical Fe₃O₄/TiN nanocomposite. A one-pot hydrothermal method [104] was used to prepare highly water-dispersed iron oxide nanoparticles. The nanofluid was prepared according to the two-step method. The nanomaterials have absorptivity at different spectral ranges, hence the hybrid reported the highest absorption efficiency compared to individual nanofluids. Almost 100% solar-weighted absorption percentage was observed at a 0.04 vol%.

The full-spectrum absorption properties of hybrid Fe₃O₄ nanoparticles were investigated by Khashan et al [105]. As a first step in hybrid synthesis, the chemical co-precipitation method [106] was employed to synthesize Fe₃O₄ nanoparticles. The researcher has employed the modified Stöber method [107, 108] for synthesizing hybrid Fe₃O₄@SiO₂ nanoparticles. At a mass fraction of 1 mg ml⁻¹, the hybrid nanofluid is reported to have the highest PTE of 98.5%. The author reported a rise in the temperature of nanofluids with the addition of kerosene.

Broadband absorbing Fe₃O₄@graphene hybrid nanofluids were prepared, and their optical properties were investigated by Tao et al [109]. For the preparation, the modified Hummer's method was used for GO sheet synthesis. Oleylamine (OLA) was used for surface modification of the as-prepared GO nanosheets to generate GO-OLA. Finally, a one-step method was employed to allow the growth of Fe₃O₄ nanoparticles and the production of graphene. The synthesized Fe₃O₄@graphene nanoparticles were collected by centrifugation and washing. The authors reported a stable colloidal solution even at higher temperatures up to 150 °C.

Shi et al [110] were successful in synthesizing hybrid Fe₃O₄@CNT composite nanofluids. As the first step in the procedure, Fe₃O₄ was synthesized by the reduction process. CNTs (0.08 g) were then mixed with Fe₃O₄ (0.32 g) in DI water by ultrasonication. Functional groups (carboxyl groups and hydroxyl groups) on the surfaces of Fe₃O₄ and CNT nanoparticles induce adhesion of particles to create Fe₃O₄@CNT nanocomposite. The Fe₃O₄@CNT nanofluid was then prepared by dispersing the particles in the base fluid. A photothermal conversion test showed that the nanofluid could achieve a collector efficiency of 88.7% at a low concentration of 0.5 g l⁻¹. The highest evaporation efficiency reported by the nanofluid was 60.3% at the same nanocomposite concentration. The hybrid nanofluid was found to be a suitable candidate for different solar thermal applications.

A DI water-based Au/Bi₂WO₆ hybrid nanoparticle with broadband absorption capability was synthesized by Wang et al [111]. In this experiment, the author used the hydrothermal method [112] for the preparation of Bi₂WO₆ nanosheets. The nanofluid achieved an efficiency of 44% in the photothermal conversion test. Solar-weighted absorptivity analysis shows that 95% of the incident beams were absorbed by the hybrid at 3 cm penetration depth, while the percentage absorption by monocomponent nanofluids was comparatively less.

Ethylene glycol-based SiC/MWCNT nanofluids were synthesized by Li et al [29]. The SiC and MWCNT mixture in hexane was stirred using a magnetic stirrer, followed by ultrasonication and centrifugation. The collected SiC-MWCNT nanoparticles, after being ground, were mixed with PVP-K30 dispersant and stirred thoroughly. The nanofluid was then made to flow through a sand milling unit. The study reported that the 0.5 wt% hybrid nanofluid absorbs about 99.9% of solar radiation at a small penetration depth of 1 cm. The photothermal conversion efficiency of the nanofluid was 97.3% for 1 wt% of SiC/MWCNT nanofluid.

Wang et al [113] successfully prepared Au/TiN plasmonic nanofluids with varying Au concentrations using an impregnation-reduction method. The solar-weighted absorption percentage was found to be higher than 90% for both 70 and 100 ppm nanofluids at 1 cm penetration depth. The solar absorption spectra of both hybrid nanofluid and TiN nanofluid coincided at higher concentration. The photothermal conversion efficiency of hybrid nanofluids is attributed to the dual plasmonic effect of Au and TiN nanoparticles. A photothermal conversion test was conducted by heating at intervals of 5 s using a xenon lamp. The highest PTE of 98% was observed after 60 s for Au/TiN nanofluids.

Li et al [114] prepared Ag@TiO₂ core–shell nanoparticles for direct absorption applications using a one-pot synthesis method. For the core–shell structure preparation, Ag nanoparticles were initially synthesized [115]. The two-step method was employed for ethanol-based nanofluid preparation. The morphology of Ag@TiO₂, as observed from the SEM image in figure 6(b), is round. The nanocomposite has a Ag core and TiO₂ shell. Nanocomposite dispersed solution exhibited a peak in the spectral absorption along the visible region.

Broad-spectrum absorbing Au/ZNG nanofluid was prepared by Lingling et al [116] using the impregnation–reduction method. In the preparation procedure, the template method was employed to synthesize ZNG [117]. In this work, ZNG was produced at 900 °C. With the impregnation–reduction method, hybrid Au/ZNG nanocomposite with varying Au loadings was prepared. The nanoparticles were then dispersed according to the two-step method, at different concentrations to obtain the required nanofluid concentrations. An optimum Au loading of 5 wt% Au/ZNG nanofluid was arrived at according to the photothermal conversion test. The synergistic effect of Au and ZNG in Au/ZNG nanofluid produced higher solar energy conversion efficiency compared to ZNG nanofluid.

Mehrali et al [118] synthesized a full-spectrum absorbing hybrid nanofluid for solar thermal applications. The hybrid nanocomposite synthesized by the wet-chemical reaction method has Ag nanoparticles decorated on the RGO. For the hybrid synthesis, the component GO was synthesized using the modified Hummer's method [119]. At a volume fraction of 40 ppm, the nanofluid-based DASCs reported an energy efficiency of 77%. The Ag-RGO hybrid nanofluid absorbs the solar beam almost completely at lower penetration depths than that of the RGO nanofluid.

Wang et al [120] analy'zed the optical properties of hybrid Au/oxygen-deficient TiO₂ nanofluids and reported broadband absorptivity. Oxygen-deficient TiO₂ nanoparticles were initially synthesized using the facile reduction method [121]. The immersion reduction reaction method [122] was adopted for the synthesis of hybrid Au/TiO_2−x nanocomposite. Nanofluids of various volume fractions were prepared by a two-step method. By analyzing the maximum temperature achieved by the fluids, an enhancement of 26.6 °C was obtained by the nanofluid over the base fluid. A PTE of 49.10% was obtained for the hybrid nanofluid.

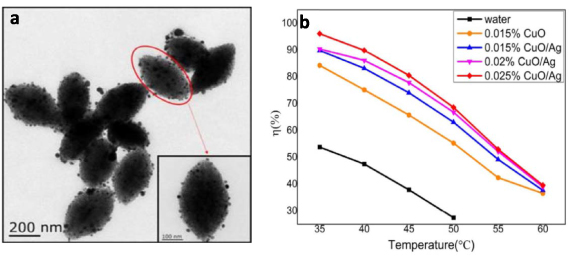

Yu et al [123] analyzed the solar thermal conversion capability of CuO/Ag hybrid nanofluids. The hybrid nanocomposite was synthesized using a reduction method [124]. Fusiform-shaped CuO nanoparticles, as observed in figure 7(a), were developed by wet-chemical reactions followed by the thermal decomposition method [125]. The PTE depicted in figure 7(b), shows that an instantaneous PTE of 96.11% was achieved at a temperature of 35 °C. A broadband absorption extending from the visible to the NIR region was observed.

Zoom In Zoom Out Reset image size

Xuan et al [126] synthesized a plasmonic TiO₂/Ag hybrid nanofluid with a broadened absorption spectrum. In this procedure, TiO₂/Ag composite nanoparticles were initially prepared. The author used the photochemical impregnation method for synthesizing TiO₂/Ag nanoparticles. Hybrid TiO₂/Ag plasmonic nanofluids were prepared according to the two-step method. The photothermal characteristics of TiO₂/Ag nanofluids were found to be better than TiO₂ nanofluid. Even though Ag nanofluids reported the same temperature rise as that of hybrids, the cost of hybrid preparation for the same concentration is comparatively cheaper.

Wang et al [127] synthesized ZnO-Au hybrid nanocomposite for low-temperature DASCs. The author synthesized ZnO nanoparticles using hydrothermal reaction, while the Au nanoparticles were prepared using a reduction process [128, 129]. The electrostatic force between the components generates hedgehog particles decorated with Au nanoparticles as observed from figure 5(b). As a final step, ZnO-Au nanocomposites were obtained in powder form by lyophilization. The morphology of the prepared nanoparticle is shown in figure 5(b). The nanofluid concentration of 1 mg ml⁻¹ has achieved a PTE of 58% and an enhancement of 240% over the base fluid.

Zeng et al [130] studied the optical property of tin–silica–Ag hybrid nanocomposite for DASC applications. During the synthesis process, Sn was first prepared, followed by SiO₂ and Ag nanoshells on the surfaces. A modified polyol wet-chemical reduction process [131] was employed to synthesize Sn nanoparticles. Hydrolysis and polycondensation of tetraethyl orthosilicate facilitates the growth of SiO₂ nanoshells on the tin nanoparticle surface. Ag shells were developed on the surface of the Sn/SiO₂ nanoparticles using reduction and Ag mirror reactions [132]. The localed surface plasmon resonance (LSPR) effect of Ag nanoparticles produced an enhancement of solar absorptivity of Sn/SiO₂/Ag nanocomposite compared to Sn/SiO₂ nanoparticles.

Shende et al [133] synthesized hybrid N-(RGO-MWNT) nanofluids for DASCs using the two-step process. As a first step, the constituents (RGO and MWNTs) were synthesized, followed by nanocomposite preparation and nitrogen doping of the prepared nanocomposite. GO was reduced to RGO by the hydrogen exfoliation technique [134]. Hummer's method [135] was employed for GO preparation. In addition to the optical properties of the nanofluid, a thermal conductivity enhancement of 17.7% was observed for 0.02 vol% nanofluid. Water-based nanofluids were found to have a higher extinction coefficient compared to EG-based nanofluids.

Zhu et al [136] synthesized broadband absorbing Ag–Au/ZNG hybrid nanofluid using the impregnation–reduction method. The photothermal conversion test established that hybrid nanofluids have the highest efficiency of 74.35% compared to Ag/ZNG and Au/ZNG nanofluids. Ethylene glycol-based nanofluids exhibited broadband absorption in the visible and NIR spectral range. The solar energy absorption fraction calculated from figure 8(b) shows that an efficiency of 97.1% was achieved by the hybrid at 10 mm penetration depth for 100 ppm.

Zoom In Zoom Out Reset image size

The optical property of the magnetic hybrid Fe₃O₄@C nanofluid was investigated by Wang et al [137]. The nanocomposite was synthesized by in situ partial reduction of spindle-like Fe₃O₄ with a carbon coating [138]. The hybrid nanofluid attains a maximum PTE of 60.9% at 500 ppm. The thermal energy conversion efficiency was found to increase with volume fraction and applied external magnetic field.

Fu et al [139] studied the photothermal conversion efficiency of GO–Au nanocomposite-based nanofluid. The component GO was prepared using the Hummer's and Marcano methods [135, 140]. The Au nanoparticles were prepared using the citrate reduction method [141]. The hybrid nanofluid was prepared by simple mechanical mixing of the components. The synergistic effect of GO and Au improves the solar radiation absorptivity of the nanofluid. Compared to monocomponent nanofluids, the vapor generation efficiency improves by 10.8% for the hybrid with 15.6 wt% of Au.

Lee et al [56] developed therminol-based core–shell plasmonic nanoparticles for DASC. The Turkevich method [142] was adopted for Au nanoparticle synthesis. The Au@SiO₂ nanofluid exhibited an absorption peak at 540 nm and enhanced absorption in the waveband range of 360–700 nm. Ag@SiO₂ nanofluid produces an absorption peak at 440 nm. The Ag@SiO₂ nanofluid demonstrated a high dispersion stability of 100%.

Duan et al [143] conducted a simulation of core–shell SiO₂/Ag nanoparticles using a finite-difference time-domain model to study the optical absorption of nanofluids. The absorption band was observed to have broadened with increasing nanoparticle size. At wavelengths closer to 1000 nm, the absorption is enhanced for hybrid nanoflsuid with a majority of medium-sized particles. In the case of nanofluids with the majority of large-sized particles, the absorption is significantly enhanced in the 1100–2500 nm wavelength range.

Fang et al [144] studied the photothermal conversion properties of CuO/ZnO nanocomposite-based nanofluids. The binary nanocomposite was prepared using the co-precipitation method. Water was selected as the base fluid. The CuO/ZnO nanocomposite with a component ratio of 0.7:0.3 attains the highest photothermal conversion efficiency of 97.35%. As observed in figure 8(a), the optical absorptivity of nanofluids, as measured using the solar-weighted absorption percentage, shows that pure CuO nanofluids have the highest value of 99.47% at 1 cm penetration depth, compared to binary nanofluids of 70% and 50% CuO content.

The photothermal conversion characteristics of MWCNT/Fe₃O₄ hybrid nanofluids were analyzed by Tong et al [145]. The EG/water mixture with a weight ratio of 20:80 was chosen as the base fluid. The two-step method was employed for the hybrid preparation. An instantaneous photothermal energy conversion efficiency of 61% was obtained for the hybrid nanofluid at 0.01 wt%. From the SWAF study on nanofluids, MWCNT/Fe₃O₄ nanofluids with a particle mixing ratio of 1:4 completely absorbed the incident solar energy at a penetration depth of 2 cm.

Jiang et al [146] developed an octopod-shaped Ag@Ag₂S nanostructure with an enhanced absorption range. The Ag nanocube dispersion in water generates Ag@Ag₂S core–shell nanoparticles by in situ sulphidation. Photothermal conversion tests performed using laser illumination at three different wavelengths indicated a maximum efficiency of 79.3%.

Luo et al [147] developed the TiN/RGO hybrid nanocomposite by the two-step method. The optimal concentration for achieving higher PTE was observed to be 40 ppm. The hybrid nanofluid showed a solar energy conversion efficiency of 66.74% at 40 ppm. The nanofluids generated an efficiency enhancement of about 23% over water.

The hybrid RGO/TiO₂ nanofluid developed by the two-step method shows significant solar absorption in the wavelength range of 200–1400 nm. Results indicate that the fluid achieved a photothermal conversion efficiency of about 91% [148]. About 94.7% degradation of tetracycline was also observed. Hence, hybrid RGO/TiO₂ nanofluids are considered to be potential candidates for photocatalytic applications.

Huang et al [149] studied the spectral-specific absorptivity of Ag@SiO₂/CoSO₄ nanofluids for spectral splitting PV/T collectors. High absorption was observed in the wavelength range outside the PV window. The nanofluid-based PV/T showed an overall efficiency of 63.3% with an enhancement in economic value of 67.8% over conventional PV-only systems. Zhao et al [150] investigated the performance of Ag@SiO₂ hybrid nanofluid-based spectrum splitting collector with PG, and PG/water mixture as the base fluid. The results indicate that an increase in the economic value of up to 30% was obtained at optimum nanofluid concentration and nanofluid thickness. A composite SiO₂/Ag nanofluid was synthesized by Joseph et al [53]. The morphology of the nanocomposite could be observed from figure 5(a). The figure 9 shows the maximum photothermal energy conversion achieved by each hybrid nanocomposite-based nanofluid that were reviwed in this study. In comparison to monocomponent nanofluids, hybrid nanofluids were found to achieve better energy conversion efficiency. During this review, it was observed that the majority of hybrid nanocomposite-based nanofluids display photothermal energy conversion efficiency above 65%. Upon analyzing the data, Au/ZnG, Fe₃O₄@SiO₂, Sn/SiO₂/Ag, Au/TiN and CuO/ZnO nanofluids were found to produce higher PTE.

Zoom In Zoom Out Reset image size

Duan et al [151] analyzed the effectiveness of blending Au nanoparticles of different shapes (rod, sphere and star-shaped) at various mass fractions for direct absorption applications. By analyzing the optical properties of blended nanofluids, broadband solar absorption was observed with performance enhancement over monocomponent nanofluids. The experimental and numerical studies conducted by Wang et al [152] on blended nanofluids showed that PTE enhancement is possible even at low volume fractions. The morphologies of the nanoparticles are shown in figure 10. In this work, Au nanorods and Ag nanosheets were blended to improve solar absorptivity. A maximum efficiency of 76.9% was reported for blended nanofluids at 0.0001 volume fractions. Qin et al [153] explored the method of improving absorption efficiency using sharp-edged metallic nanoparticles. The study reported that the usage of sharp-edged Ag and SiO₂/Ag core–shell nanoparticles has a higher solar-weighted absorption coefficient compared to smoother particles. Du and Tang [154] conducted a numerical study on blending different-shaped Au nanoparticles to enhance their optical absorption properties. In this study, different proportions of Au nanorods, nanosheets and nanoellipsoids were blended. Summary of the above-mentioned stuies are tabulated as observed from table 3. For blended nanofluids, a significant enhancement in solar energy harvesting efficiency (104%) was reported over the spherical Au nanoparticle dispersion even with smaller particle sizes and at lower concentrations. Photothermal efficiencies of blended nanofluids with different nanomaterial shapes are depicted in figure 11. The results of blended nanofluids are plotted along with individual nanofluids for an effective comparison. Blended Ag nanofluid with nanosphere, nanodisk, nanorod, core–shell and nanoprism-shaped nanoparticles reported the highest efficiency of 98.17% [154].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Jeon et al [156] experimentally analyzed the optical absorptivity of Au nanorods based on blended nanofluids. Results from the study show that at a low volume percentage of 0.0001%, the extinction coefficient in the visible spectrum was 1.77 cm⁻¹. Blending AuNRs of varying aspect ratios broadens the spectral absorption across the visible and NIR regions. Jeon et al [157] conducted further studies on photothermal efficiencies of dispersion in Au nanorods of different aspect ratios. Due to the LSPR phenomenon, the blended nanofluid exhibisd excellent PTE along the spectrum during direct absorption analysis under a solar simulator. Chen et al [158] analyzed the photothermal conversion properties of nanofluids based on Au nanoparticles. The morphological analysis and size distribution of Au nanoparticles with varying particle size is depicted in figure 12. Flat and cube-shaped direct absorption models were studied, and it was found that the cube-shaped DASC model had the highest efficiency. The photothermal efficiency of the flat-shaped model decreases with an increase in Au nanoparticle size. Saidur et al [159] performed a numerical study on the effect of nanoparticle size and volume fraction on the extinction coefficient of nanofluids. The study reported that even though the nanoparticle size has less significance, the volume fraction of the nanoparticle was observed to be linearly dependent on the extinction coefficient. As reported by Liu et al [160], the carbon and graphite-based nanofluids were reported to show energy conversion efficiency as high as 100%. The optical properties of the blended nanofluids with different nanoparticle size is detailed in table 4. A brief graphical representation of the PTE and the extinction coefficient of the above-discussed nanofluids is shown in figures 13 and 14, respectively. It could be inferred from figure 14 that the blended nanofluid with different nanoparticle sizes performed better compared to its counterparts.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Chen et al [54] characterized the optical absorption and photothermal conversion properties of a CuO-ATO binary nanofluid due to its complementary optical absorptivity in the visible and NIR spectra. The SWAF was maximum for binary nanofluids compared to the individual CuO and ATO nanofluids at the same volume fraction. Zeng et al [51] conducted an experimental study on the photothermal properties of MWCNT-SiO₂/Ag binary nanofluids. Blending SiO₂/Ag and MWCNT nanoparticles, which have strong absorptivity along with visible and infrared spectra, respectively, broadened the absorption band significantly. Mcglynn et al [161] blended CuO quantum dots and Au nanoparticles to synthesize nanofluids with better absorptivity. The CuO quantum dots have strong absorption in the shorter wavelength region of the visible spectrum and UV spectrum, while the Au nanoparticles have an absorption peak in the visible spectrum. Analyzing the absorption coefficient of blended nanofluids, it was observed to outperform both CuO and Au nanofluids. Qu et al [52] experimentally evaluated the optical absorption and solar energy conversion properties of CuO/MWCNT nanofluids at different mixing ratios of constituents. As observed from TEM images of blended nanofluids in figure 15(a), a uniform mixture is produced. The addition of CNT at very low concentration (0.0015 wt%) in CuO nanofluids was observed to show a significant enhancement in photothermal conversion efficiency. Figure 15(b) shows that the lowest transmittance is reported for nanofluids with the highest weight percentage of CuO nanoparticles. Bhalla et al [57] performed a comprehensive study on direct and surface absorption using Al₂O₃/Co₃O₄ blended nanofluid. The study showed that compared to surface absorption, the blended nanofluid-based direct absorption has higher efficiency and the PTE increases linearly with the mass fraction. Zeiny et al [162] conducted a photothermal energy conversion test on Au–Cu blended nanofluid and compared the results with that of individual and carbon black nanofluids. Carbon black nanofluids weres found to exhibit the highest efficiency compared to other nanofluids. Even though the blending of Au and Cu broadens the absorption peak, a reduction in peak value is observed. Chen et al [163] synthesized Ag–Au blended nanofluid having solar absorption at different wavebands and performed a photothermal conversion test. The results show that the energy conversion efficiency of Ag–Au blended nanofluid (30.97%) is almost equal to the sum of the efficiencies of Ag and Au nanofluids at the same concentrations. Menbari et al [164] prepared a multicomponent nanofluid by dispersing Al₂O₃ and CuO nanoparticles in a mixture of water and EG. The extinction coefficient of a binary nanofluid is observed to be higher than or equal to the sum of its monocomponent nanofluids. Shin et al [165] performed photothermal analysis on blended nanofluids based on CNT and magnetic nanoparticles. The results from the study showed that applying an external magnetic field produced an enhancement in PTE and thermal conductivity of the nanofluid. Wang et al [166] experimentally analyzed the PTE enhancement of an EG-based RGO nanofluid by adding a magnetic nanorotor. Forced convection induced by magnetic nanoparticles exhibits an increase in PTE due to the synergy of multicomponent nanomaterials. Yuan et al [167] developed a nanofluid-based spectrum splitter for greenhouse applications in which the unfavorable solar radiation that is not required by the plants would be absorbed by nanofluids (in the range of 800–1500 nm), and the remaining solar radiation (in the range of 300–800 nm) would be allowed to pass through. The photothermal conversion efficiency is 34.4% and the system yields 358.9 kWhm⁻². The use of GO and TiN nanoparticle dispersions in thermal oil was found to produce a thermal energy conversion efficiency of 56.5% for DASC [168]. Zn/ZnO nanofluids were reported to produce a photothermal conversion efficiency of 18.3% at lower concentration (0.001 wt%) [169]. A brief information on the PTE and solar radiation absorption efficiency of the blended nanofluids discussed above is visualised in Figure 16 and detailed in table 5. By analyzing the graph, it can be concluded that nanofluids with MWCNT as one of the constituents generate higher photothermal and solar absorption efficiency.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size
